Product introduction

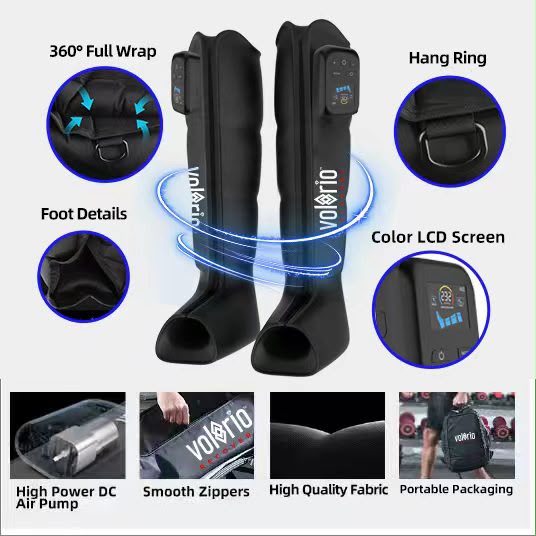

The air compression leg massager is an intelligent massage device specifically designed to smooth relax and restore youleg muscles It utilizes air pressure technology to simulate the techniques of manual massage, providing you with a comprehensive and comfortable massage experience. Equipped with multiple chambers, this massager covers the entire leg, including the thighs, calves, and ankles. As you use the massager, the chambers will inflate and deflate in a sequential manner, generating a moderate pressure to promote blood circulation, relieving leg fatigue and muscle tension.
Massage mode
Sequence: Automatic circular massage from bottom to top.
Circulation: Optional massage area for individual massage.
Whole: Massage the whole leg gradually from the bottom up.
Battery display
● Green indicator:100%-65%
● Blue indicator:65%-25%
● Red indicator:25%-5%
● Power below 5% will automatically off.
● CH will be displayed during charging.Please note that this product cannot be used during charging
Product parameter
Product Name: Air compression leg massager
Model No.: KB-9490ProE

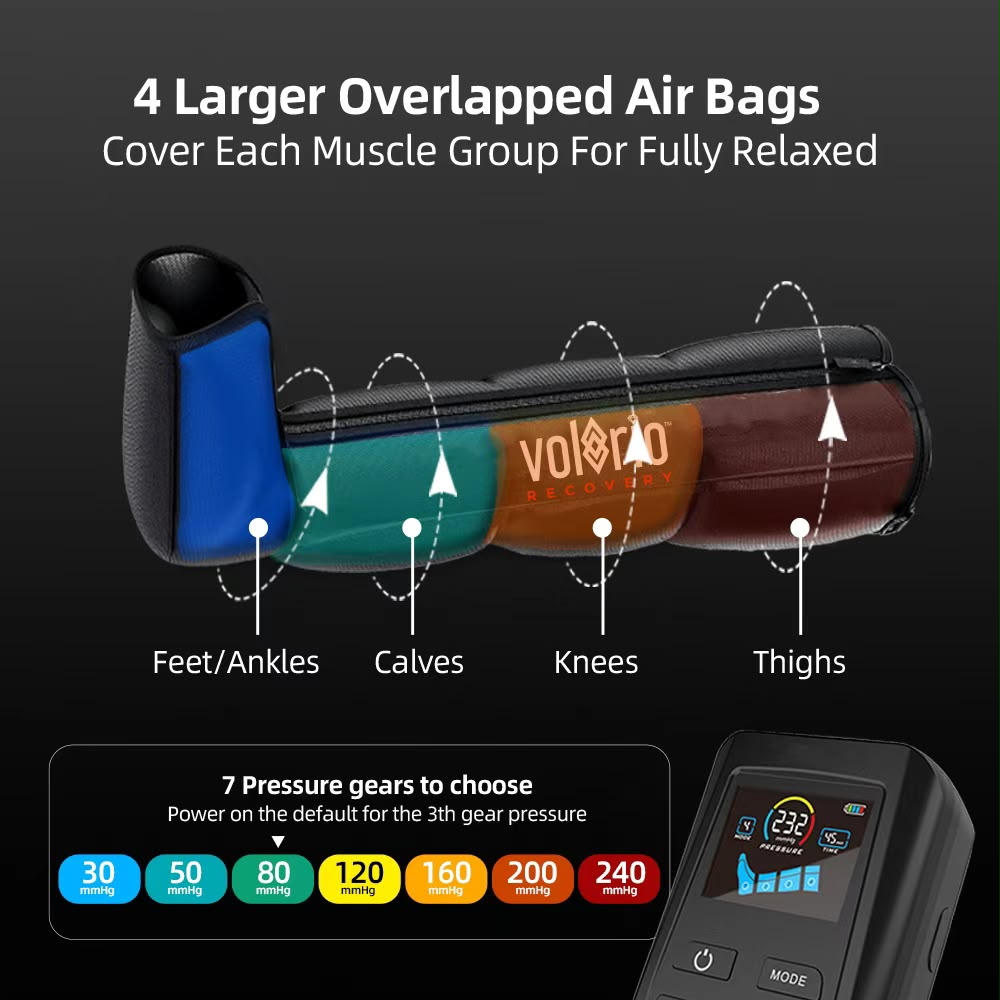

Pressure level: 30/50/80/120/160/200/240mmHg
Noise: ≤55dB
Charging port: DC
Battery: 3200mAh/7.4V lithium battery
Charging current: 5V-2A
Charging time: 2 hrs
Working time: 1.5-2hrs
Product Weight: 1.4 KG
Input voltage: 100-240V AC
Power: 24W
Cleaning

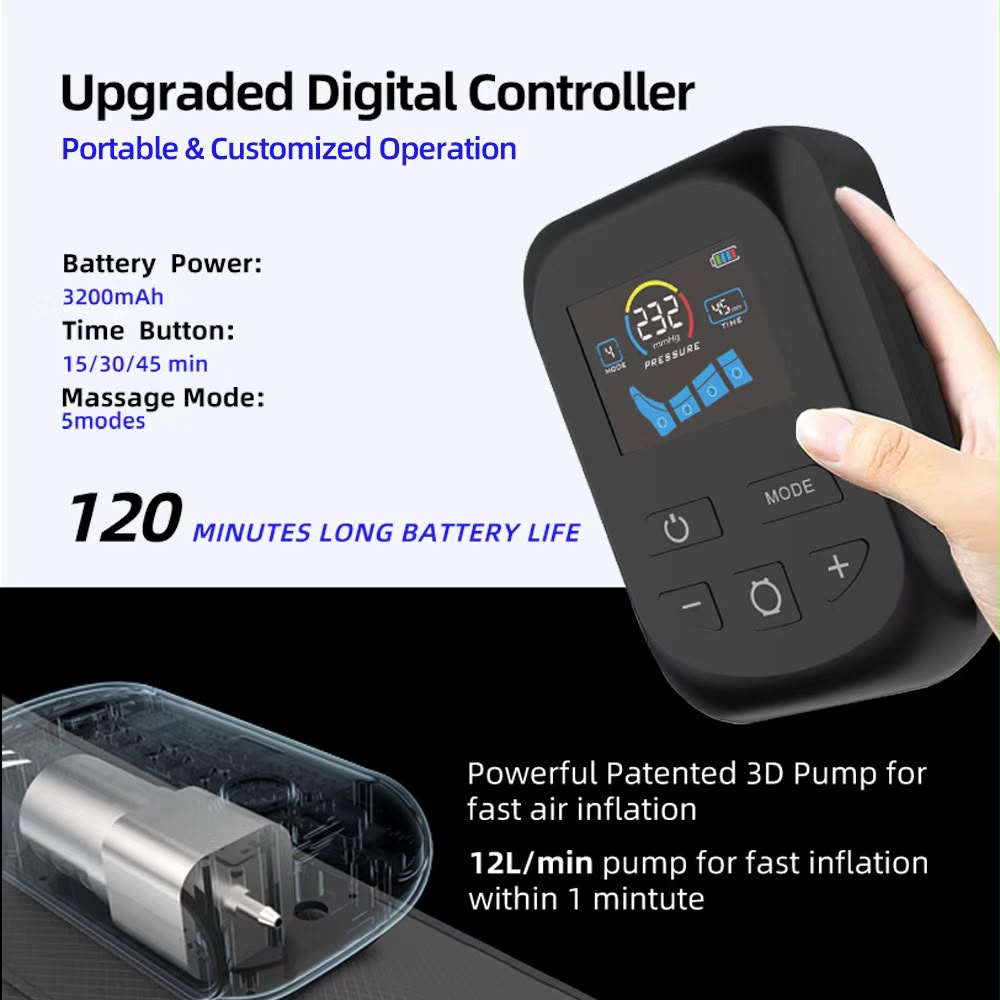

Controller: Wipe the display with a soft cloth.
Fabric: This product does not support washing, please use alcohol sterilization or clean wet towel wipe.
Storage requirement: Keep this product out of reach of children, away from moisture, heat, direct sun and water. If not used for a long time, it should be charged every two months.
Discard: Dispose of discarded batteries in accordance with local regulations or environmental regulations
Use environment
Product failure analysis and treatment
Product safety precautions
1. Charging with adapters that do not meet the requirements of this product is prohibited.
2. Non-professional repair technicians are prohibited from decomposing and repairing this product.
3. If the power cord is damaged, in order to avoid danger, it must be replaced by the manufacturer or its maintenance department and similar full-time personnel.
4. Do not use in wet areas or when the product has penetrated into water or other liquids.
5. After use, please place the massager in a dry place, away from humidity and direct sunlight.
6. Do not place in fusible, explosive, chemical solution, damp place.
7. Do not touch the product with sharp objects to prevent damage to the product parts.
8. If you feel uncomfortable or abnormal during use, please stop using immediately.
9. Do not use in high temperature environment.
10. Please keep the product clean and use a dry towel during maintenance.
11. Before using this product, it is recommended to consult a doctor or use under the guidance of a professional:
● High-risk pregnant women and children should not use.
● Mental patient
● Suffer from skin infection, skin swelling, scalding burns, etc
● High-risk patients who have a serious illness and are not suitable for massage
● The injured have weak or damaging bones
● People with cardiac pacemakers
● The body is fitted with other metal devices, such as prosthetics

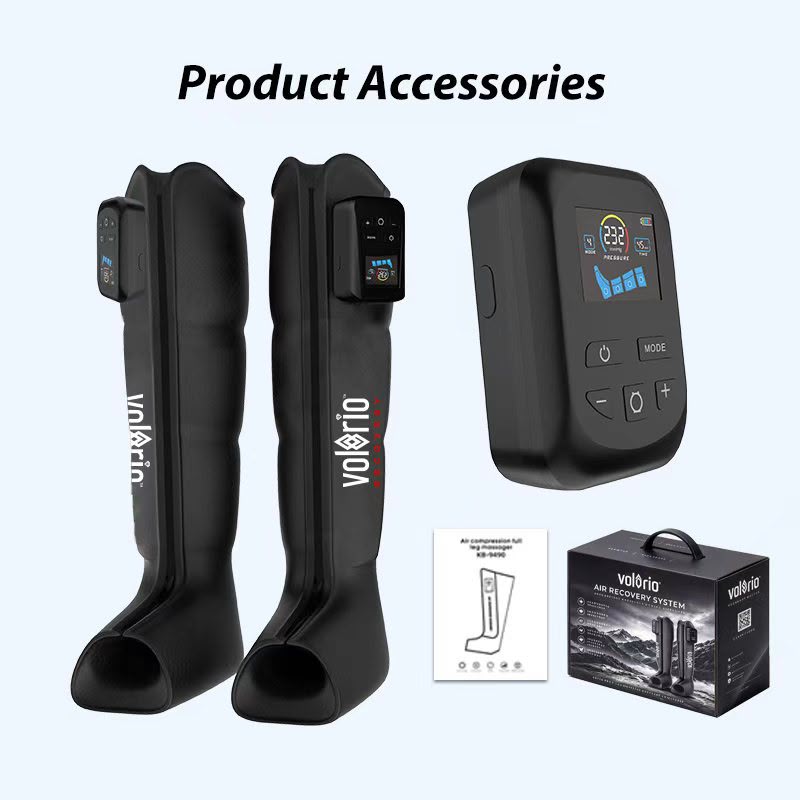

Accessories
1. Boots x 2 pcs
2. Charging Line x 1 pcs
3. Instructions x 1 pcs
4. Controller x 1 pcs (Optional)
Operation Instructions
